电阻式RS-232触控控制板

PenMount RS-232 系列的控制板一共有兩款:

  • PM9026BH
  • PM9036CH

PM9026BH支援4、8線式的觸控螢幕,它的驅動程式支援全部的Microsoft和Linux作業系統平台具,備touch的LED顯示燈。PM9036CH可以選擇支援4、8線或5線式觸控螢幕。

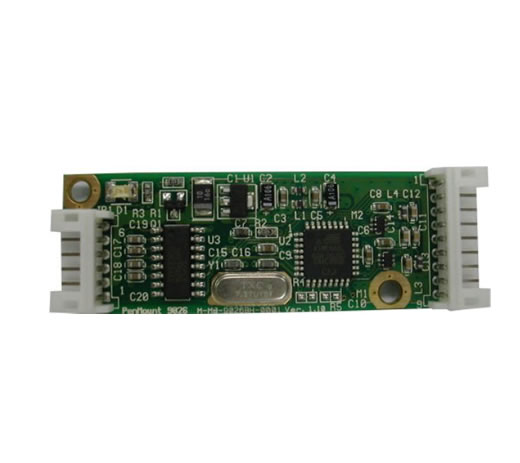

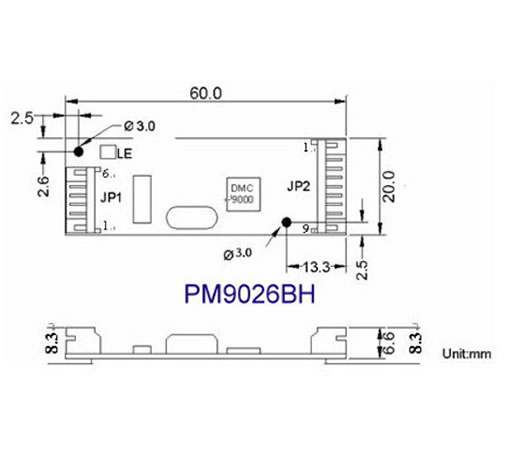

PM9026BH Control Board

Touch Screen

For 4, 8-wire analog resistive type

Interface

RS-232

Baud Rate

19200 baud rate selection, N81

Mode selection

PnP mode

Resolution

2048×2048

Resistance Range

50~1.3K ohm

Electrostatic Discharge (ESD)

Air Discharge 15KV
Contact Discharge 8KV

Power Input

+5V DC

Operating Temperature

0℃ ~ 50 ℃

Mechanical Size

60×26 mm, two 3φ screw holes

Diagnostic

LED on board

Power Consumption

Standby Mode : 16 mA ; Active Mode : 27.5 mA

( VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm )

Note. Actual current will be different by touch panel’s resistance.
PM9036CH Control Board Driver Software

DOS, Windows 3.1/ NT4.0/ 95/ 98/ Me/ 2000/ XP/ 2003/ 2008/ Vista/ 7/ 8, Linux (up to kernel 2.6), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5, Windows CE 4.2/ 5.0/ 6.0/ 7.0 (for X86, Armv4, Armv4i platform); Solaris 10

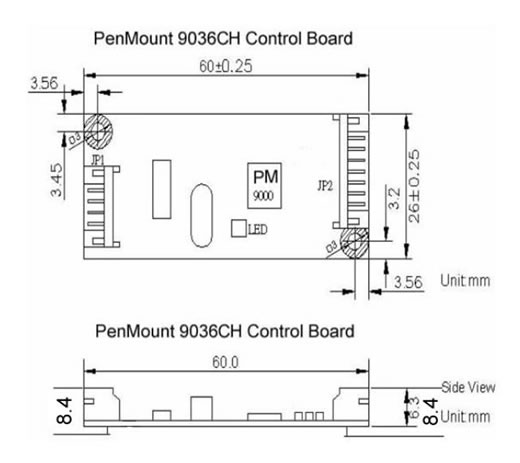

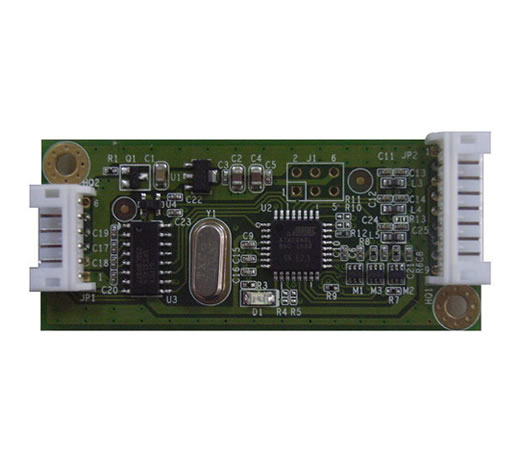

PM9036CH Control Board



Touch Screen

For 4, 8-wire or 5-wire analog resistive type

Interface

RS-232

Baud Rate

19200 baud rate selection, N81

Mode Selection

PnP mode

Resolution

2048×2048

Resistance Range

50~1.3K ohm

Electrostatic Discharge (ESD)

Air Discharge 15KV
Contact Discharge 8KV

Power Input

+5V DC

Operating Temperature

-20℃ ~ 70 ℃

Storage Temperature

-40 ℃~ 85 ℃

Mechanical Size

60×26 mm, two 3φ screw holes

Diagnostic

LED on board

Power Consumption

Standby Mode : 16 mA ; Active Mode : 27.5 mA

( VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom   sheet Panel Resistance: 660 ohm )

Note. Actual current will be different by touch panel’s resistance.
PM9036CH Control Board Driver Software

DOS, Windows 3.1/ NT4.0/ 95/ 98/ Me/ 2000/ XP/ 2003/ 2008/ Vista/ 7/ 8, Linux (up to kernel 2.6), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5, Windows CE 4.2/ 5.0/ 6.0/ 7.0 (for X86, Armv4, Armv4i platform); Solaris 10
