Resistive Control Chips

If you would like to design PenMount control components onto your system, solutions are provided here.  If you need circuit diagrams or development related documents, please contact us.

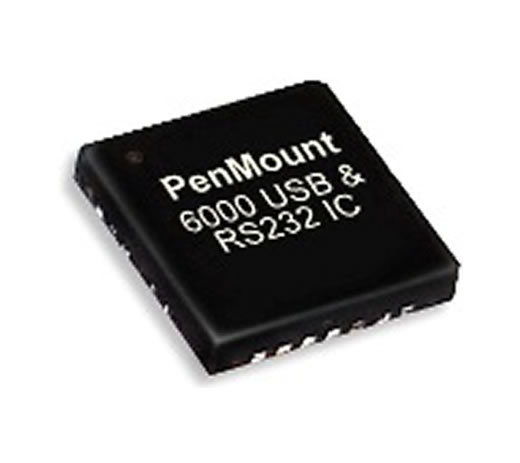

PenMount 6000 Touch Panel Controller Chipset (RoHS Compliant)

The PenMount 6000 is a high performance controller featuring plug-and-play functionality and conforms to the trends of the latest operating systems.  The high performance touch panel control chip utilizes USB and RS-232 interfaces.  The PenMount 6000 possesses a built-in 10-bit A/D converter and is suitable for high density circuit design.

Touch Screen

4, 5 , 8-wire

Package

28-pin QFN

Communications

RS-232 19200 / 9600 baud rate
USB Full-speed, 12Mbps

Feature
  • High-speed pipelined 8051-compatible microcontroller core (up to 25MIPS)
  • True 10-bit ADC with analog multiplexer
  • On-chip Voltage Reference and Temperature Sensor
  • On-chip Voltage Comparators
  • 12 MHz internal oscillator
  • On-chip FLASH memory
  • USB, UART interfaces implemented in hardware
Sample Rate

160 points per second (minimal)

Resolution

1024×1024

Resistance Range

50~1.3K ohm

Operating Voltage

+3.3V ~ +5V DC ± 5%

Operating Temperature

-40 ℃ to +85 ℃

Storage Temperature

-65 ℃ to +150 ℃

Power Consumption

Standby Mode : 13.4 mA ; Active Mode : 24.6 mA
(VCC=+5V, Top sheet Panel Resistance: 274Ω;  Bottom sheet Panel Resistance: 770Ω)

PM6000 Controller Driver Software
RS232 interface:
DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3/ 6.4/ 6.5
USB interface:
Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7, WinCE 4.2/ 5.0/ 6.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3/ 6.4/ 6.5 (Inbox support)

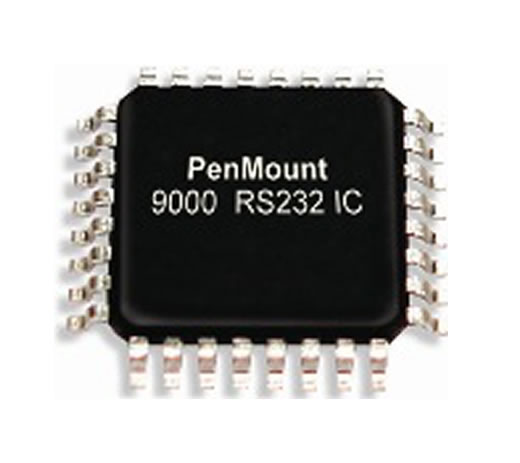

PenMount 9000 Touch Panel Controller Chipset (RoHS Compliant)

The PenMount 9000 high performance touch panel control chipset utilizes the RS-232 interface, possesses a built-in A/D converter, and meets the needs of proprietary circuit boards.  In addition, these individual control units are suitable for the regional compensation of large touch panels.  The PenMount 9000 supports 4, 8, and 5 wire touch panels.

Touch Screen

4, 5 & 8 wire

Package

32-pin TQFP

Communications

RS-232 interface

Nature

8-bit RISC microprocessor with built-in functions including 10-bit ADC, UART, Timer, Counter, Comparator, Watchdog, Memory, etc.

Operating Voltage

DC +5V

Power Consumption (at 4 MHz, 3V)

Active: 3.6 mA / Idle Mode: 1.0mA
Power Down Mode: 0.5 µA

Operating Temperature

-40 ℃ to +85 ℃

Storage Temperature

-65 ℃ to +150 ℃

Please refet to the data sheet describing ATmega8L-8AU from ATMEL for more detail.

PM9000 Controller Driver Software

DOS, Windows 3.1/ NT4.0/ 95/ 98/ Me/ 2000/ XP/ 2003/ 2008/ Vista/ 7/ 8, Linux (up to kernel 2.6), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5,  Windows CE 4.2/ 5.0/ 6.0/ 7.0 (for X86, Armv4, Armv4i platform); Solaris 10

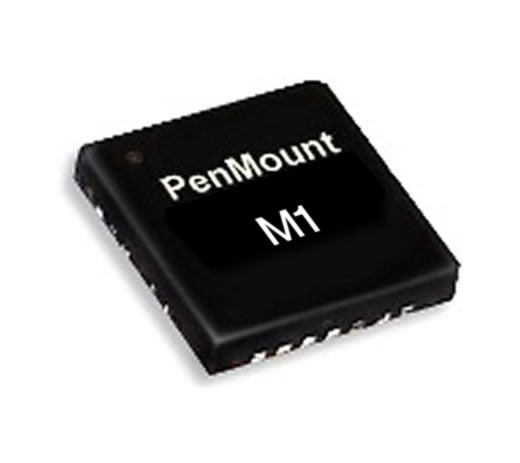

PenMount M1 Resistive Touch Control Chip (RoHS Compliant)

The PenMount M1 is a touch controller developed by PenMount for special industrial computer applications.  The PenMount M1 supports the USB interface, possesses a built-in 10-bit A/D converter, is suitable for high density circuit design, and can be paired with resistive touch panel design with up to 12 zones to realize the special “safety” and “confirmation” functions designed by PenMount.

PenMount M1
Support

Able to support Multi-Finger Resistive touch screen with 1~12 zones

Interface

USB Model : USB Full Speed
RS232 Model : 19200 baud rate, None parity, 8 data bits, 1 stop bit, non-PnP mode

Resolution

1024 x 1024

Cursor Accuracy

< 1% (Active Area Diagonal of touch screen. After calibrated with PenMount Advanced Calibration)

Sample Rate

167 points/sec (1 finger touch)
125 points/sec (2 fingers per finger)
The average is about 100~40 points/sec.(3~12 fingers)

Resistance Range

50 ~ 1.5 K ohm for each zone

Touch Response Time

30ms

Power Requirements

Voltage: +5V DC ± 5% (50mV peak to peak max ripple)
(Current: maximal 100mA, typical 70mA)

Storage Temperature

-40 ℃ to +85 ℃

Operating Temperature

-20 ℃ to +70 ℃

PenMount M1 Driver and Software
  • Supports Microsoft Windows XP / Vista / 7
  • Provides single touch gesture recognition on Microsoft Windows systems
  • Software library is available by request for developing applications based on Microsoft Windows 2000 and later operating systems.
  • Available software utilities :
    • Advanced calibration
    • Right mouse button simulation
    • Multi-monitor setting
    • Screen rotation detection
    • Draw program
