電阻式Combo控制板

PenMount Combo控制板(RS-232 & USB)一共有三款,這三款PenMount Combo控制板均可以自動偵測USB & RS-232介面,而且全部支援4、5、8線式電阻式觸控螢幕;PenMount提供的驅動程式更能自動偵測安裝適合的驅動程式:

  • PM6500
  • PM6200
  • PM6202

這三款PenMount觸控控制板均使用包含10-bit A/D的全功能PM6000觸控控制IC,您也可以選擇另外設計12-bit ADC。在控制板上有兩個連接器,一個連接4、5、8線式電阻式觸控螢幕,另一個連接USB & RS-232介面。

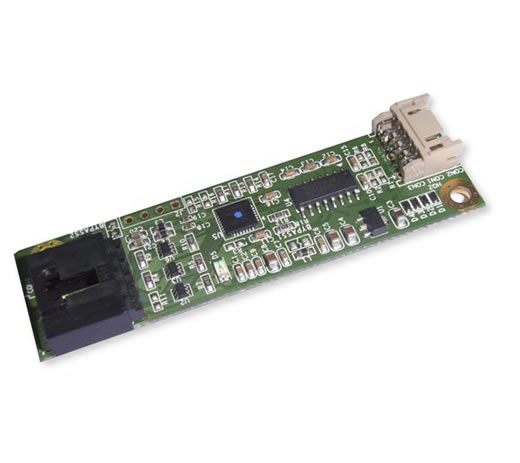

PM6202B CW5 Control Board

Touch Screen

For 4- or 5-wire analog resistive touch screens

Interface

USB:Full speed 12MHz bps
RS232:9600 baud rate, non-PnP mode

Touch Screen Controller

PenMount 6000 controller IC

Resolution

2048×2048

Dimension Holes

(L)70.0mm x (W)20.0mm x (H)10.3mm (max), two 3.0 φ screw

Connector

ZIF connector or Wafer connector on board for touch screen

Diagnostic

LED on board

Cursor Accuracy

< 1%  (Active Area Diagonal of touch screen with PenMount Advanced calibration utility support)

Resistance Range

30 ~ 1.3K ohm

Operating Voltage

+5V DC

Power Consumption

Standby Mode : 13.8 mA ; Active Mode : 21.8 mA

( VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm )

Note. Actual current will be different by touch panel’s resistance.
Electro Static Discharge (ESD)

Air Discharge 15KV , Contact Discharge 8KV

Storage Temperature

-40 ℃ ~ 85 ℃

Operating Temperature

-20 ℃ ~ 70 ℃

PM6202 board Driver Software

RS232 interface:DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0, Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5

USB interface:Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.4.1/ 6.5 (Inbox support)

PM6202B CW4 Control Board

Touch Screen

For 4- or 5-wire analog resistive touch screens

Interface

USB:Full speed 12MHz bps
RS232:9600 baud rate, non-PnP mode

Touch Screen Controller

PenMount 6000 controller IC

Resolution

2048×2048

Dimension Holes

(L)70.0mm x (W)20.0mm x (H)10.3mm (max), two 3.0 φ screw

Connector

ZIF connector or Wafer connector on board for touch screen

Diagnostic

LED on board

Cursor Accuracy

< 1%  (Active Area Diagonal of touch screen with PenMount Advanced calibration utility support)

Resistance Range

30 ~ 1.3K ohm

Operating Voltage

+5V DC

Power Consumption

Standby Mode : 13.8 mA ; Active Mode : 21.8 mA

( VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm )

Note. Actual current will be different by touch panel’s resistance.
Electro Static Discharge (ESD)

Air Discharge 15KV , Contact Discharge 8KV

Storage Temperature

-40 ℃ ~ 85 ℃

Operating Temperature

-20 ℃ ~ 70 ℃

PM6202 board Driver Software

RS232 interface:DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0, Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5

USB interface:Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.4.1/ 6.5 (Inbox support)

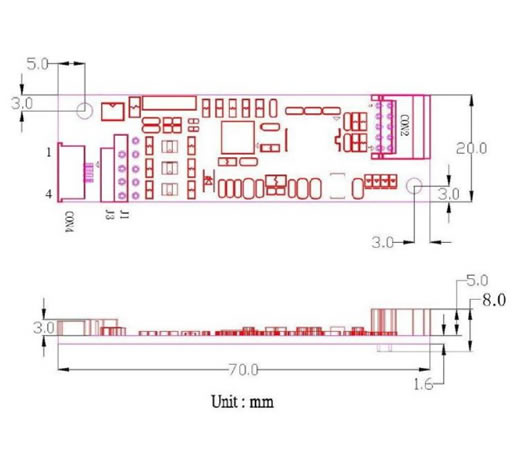

PM6202B CZ4 Control Board

Touch Screen

For 4- or 5-wire analog resistive touch screens

Interface

USB:Full speed 12MHz bps
RS232:9600 baud rate, non-PnP mode

Touch Screen Controller

PenMount 6000 controller IC

Resolution

2048×2048

Dimension Holes

(L)70.0mm x (W)20.0mm x (H)10.3mm (max), two 3.0 φ screw

Connector

ZIF connector or Wafer connector on board for touch screen

Diagnostic

LED on board

Cursor Accuracy

< 1%  (Active Area Diagonal of touch screen with PenMount Advanced calibration utility support)

Resistance Range

30 ~ 1.3K ohm

Operating Voltage

+5V DC

Power Consumption

Standby Mode : 13.8 mA ; Active Mode : 21.8 mA

( VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm )

Note. Actual current will be different by touch panel’s resistance.
Electro Static Discharge (ESD)

Air Discharge 15KV , Contact Discharge 8KV

Storage Temperature

-40 ℃ ~ 85 ℃

Operating Temperature

-20 ℃ ~ 70 ℃

PM6202 board Driver Software

RS232 interface:DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0, Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5

USB interface:Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.4.1/ 6.5 (Inbox support)

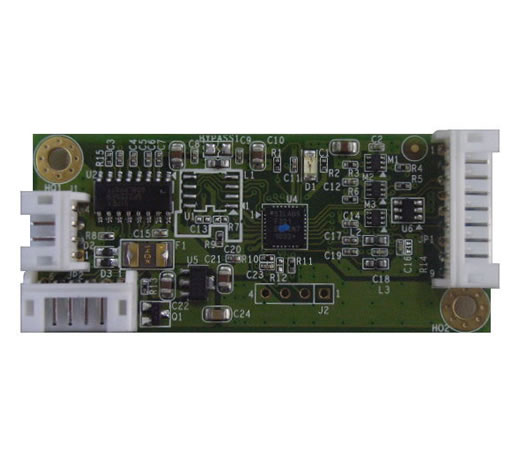

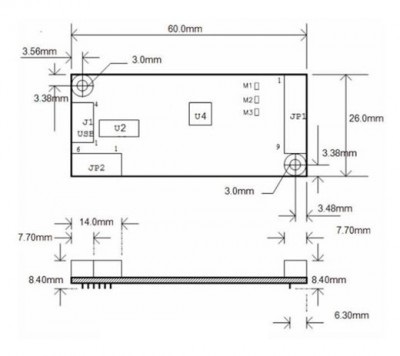

PM6500A Control Board

Touch Screen

For 4, 8-wire or 5-wire analog resistive type

Interface

USB:Full speed 12Mbps

RS-232: 19200 baud rate, N81 PnP mode

Touch Screen Controller

PenMount 6000 controller IC

Resolution

2048×2048

Size

60×26 mm, two 3φ screw holes

Cursor accuracy

< 1%  (Active Area Diagonal of touch screen with PenMount Advanced calibration utility support)

Resistance Range

50~1.3K ohm

Diagnostic

LED

Operating Voltage

+5V DC

Storage Temperature

-40 ℃~ 85 ℃

Operating Temperature

-20℃ ~ 70 ℃

Power Consumption

Standby Mode : 14.4 mA ; Active Mode : 22.5 mA

(VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm)

Note. Actual current will be different by touch panel’s resistance.
PM6500 board Driver Software

RS232 interface:DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0, Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5

USB interface:Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.4.1/ 6.5 (Inbox support)

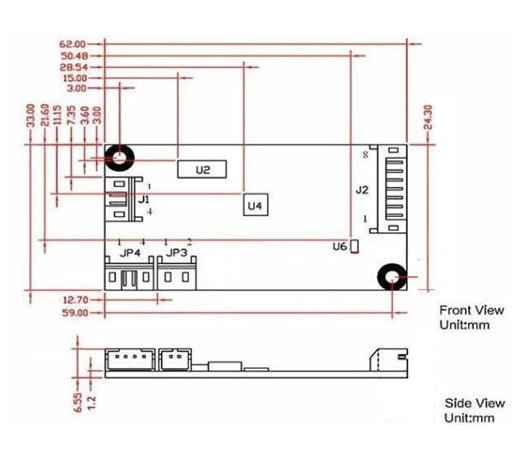

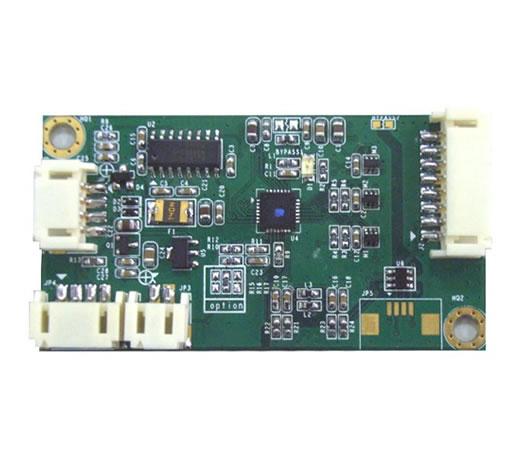

PM6200D5 Control Board

Touch Screen

For 5-wire analog resistive type

Interface

USB: Full speed 12MHz bps
RS-232: 19200 baud rate ; PnP mode

Touch Screen Controller

PenMount 6000 controller IC

Resolution

2048X2048

Cursor Accuracy

< 1%  (Active Area Diagonal of touch screen with PenMount Advanced calibration utility support)

Diagnostic

LED on board

Resistance Range

50 ~ 1.3K ohm

Operating Voltage

+5V DC for USB
+5V~12V DC for RS232

Electro Static Discharge (ESD)

Air Discharge 15KV
Contact Discharge 8KV

Storage Temperature

-40 ℃ ~ 85 ℃

Operating Temperature

-20 ℃ ~ 70 ℃

Power Consumption

Standby Mode : 15.4 mA ; Active Mode : 24.2 mA

(VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm)

Note. Actual current will be different by touch panel’s resistance.
MTBF

30℃ — 3689930.7 Hours
40℃ — 2631756.24 Hours

PM6200 board Driver Software

RS232 interface:DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0, Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5

USB interface:Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.4.1/ 6.5 (Inbox support)

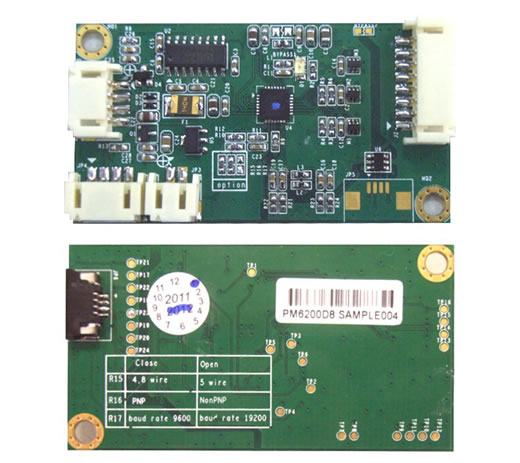

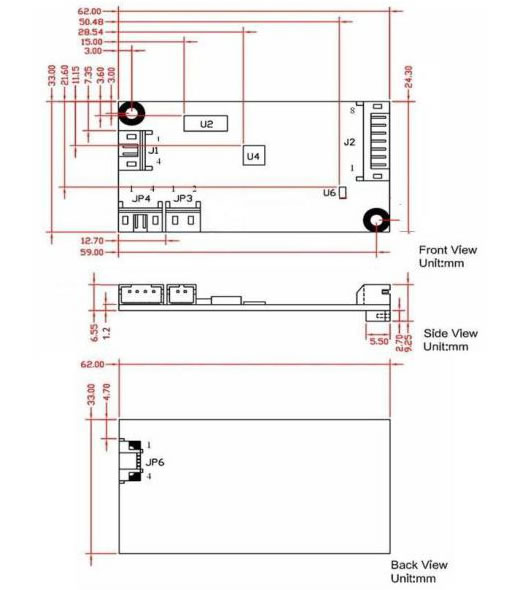

PM6200D8 Control Board

Touch Screen

For 4-, 8-wire analog resistive type

Interface

USB: Full speed 12MHz bps
RS-232: 19200 baud rate ; PnP mode

Touch Screen Controller

PenMount 6000 controller IC

Resolution

2048X2048

Cursor Accuracy

< 1%  (Active Area Diagonal of touch screen with PenMount Advanced calibration utility support)

Diagnostic

LED on board

Resistance Range

50 ~ 1.3K ohm

Operating Voltage

+5V DC for USB
+5V~12V DC for RS232

Electro Static Discharge (ESD)

Air Discharge 15KV
Contact Discharge 8KV

Storage Temperature

-40 ℃ ~ 85 ℃

Operating Temperature

-20 ℃ ~ 70 ℃

Power Consumption

Standby Mode : 15.4 mA ; Active Mode : 24.2 mA

(VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm)

Note. Actual current will be different by touch panel’s resistance.
MTBF

30℃ — 3689930.7 Hours
40℃ — 2631756.24 Hours

PM6200 board Driver Software

RS232 interface:DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0, Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5

USB interface:Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.4.1/ 6.5 (Inbox support)
