电阻式触控控制晶片

如需要将PenMount控制元件设计于你的系统上,这里有提供解决方案。如需要电路图或开发相关文件,请与我们联络。

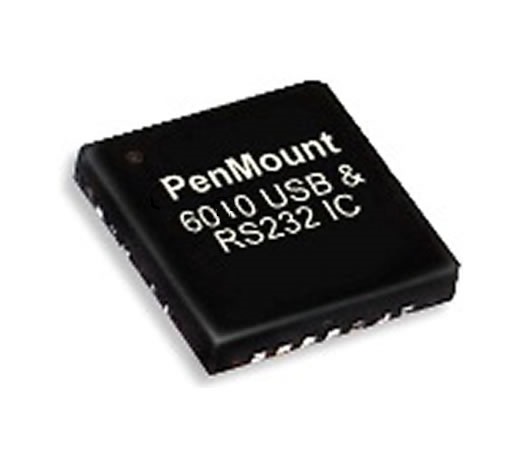

PenMount 6000 觸控式螢幕控制晶片組 (RoHS Compliant)

PenMount 6000是一款擁有高效能的觸控控制器,內含隨插即用的功能符合最新作業系統的趨勢。是採用USB及RS-232界面的高性能觸控式螢幕控制晶。PenMount 6000內含10-bit A/D轉換器,適合高密度電路設計。

Touch Screen

4, 5 , 8-wire

Package

28-pin QFN

Communications

RS-232 19200 / 9600 baud rate
USB Full-speed, 12Mbps

Feature
  • High-speed pipelined 8051-compatible microcontroller core (up to 25MIPS)
  • True 10-bit ADC with analog multiplexer
  • On-chip Voltage Reference and Temperature Sensor
  • On-chip Voltage Comparators
  • 12 MHz internal oscillator
  • On-chip FLASH memory
  • USB, UART interfaces implemented in hardware
Sample Rate

160 points per second (minimal)

Resolution

1024×1024

Resistance Range

50~1.3K ohm

Operating Voltage

+3.3V ~ +5V DC ± 5%

Operating Temperature

-40 ℃ to +85 ℃

Storage Temperature

-65 ℃ to +150 ℃

Power Consumption

Standby Mode : 13.4 mA ; Active Mode : 24.6 mA
(VCC=+5V, Top sheet Panel Resistance: 274Ω;  Bottom sheet Panel Resistance: 770Ω)

PM6000 Controller Driver Software
RS232 介面:
DOS, Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7/ 8, WinCE 4.2/ 5.0/ 6.0/ 7.0,  Linux (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3/ 6.4/ 6.5
USB 介面:
Windows 2000/ XP/ XPE/ 2003/ 2008/ Vista/ 7, WinCE 4.2/ 5.0/ 6.0,  Linux OS (Kernel 2.6 and X-Window mode), QNX 6.2/ 6.3/ 6.4/ 6.5 (Inbox support)

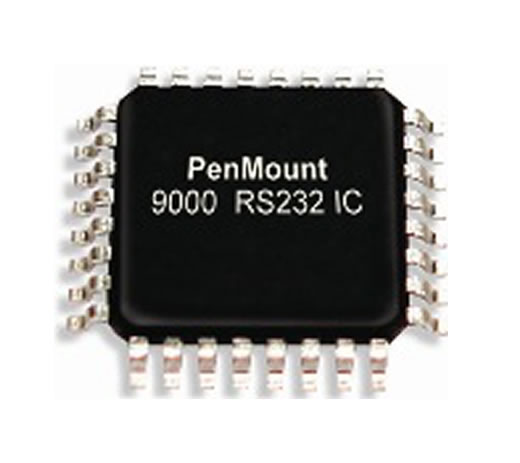

PenMount 9000 觸控螢幕控制器晶片組 (RoHS Compliant)

PenMount 9000是採用RS-232界面的高性能觸控式螢幕控制晶片組,內含A/D轉換器符合需要自製電路板的需求。除此之外這些個別控制單元,適合大型觸控式面板的區域補償。PenMount 9000支援4線、8線、5線觸控式面板使用。

Touch Screen

4, 5 & 8 wire

Package

32-pin TQFP

Communications

RS-232 interface

Nature

8-bit RISC microprocessor with built-in functions including 10-bit ADC, UART, Timer, Counter, Comparator, Watchdog, Memory, etc.

Operating Voltage

DC +5V

Power Consumption (at 4 MHz, 3V)

Active: 3.6 mA / Idle Mode: 1.0mA
Power Down Mode: 0.5 µA

Operating Temperature

-40 ℃ to +85 ℃

Storage Temperature

-65 ℃ to +150 ℃

Please refet to the data sheet describing ATmega8L-8AU from ATMEL for more detail.

PM9000 Controller Driver Software

DOS, Windows 3.1/ NT4.0/ 95/ 98/ Me/ 2000/ XP/ 2003/ 2008/ Vista/ 7/ 8, Linux (up to kernel 2.6), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5,  Windows CE 4.2/ 5.0/ 6.0/ 7.0 (for X86, Armv4, Armv4i platform); Solaris 10

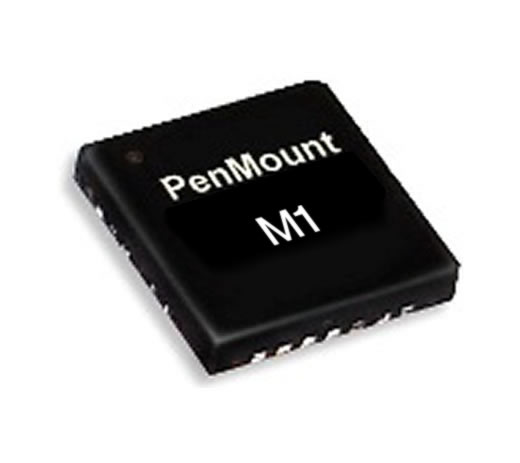

PenMount M1電阻式觸控晶片 (RoHS Compliant)

PenMount M1 是PenMount為工業電腦特殊應用所開發的觸控控制器,支援USB介面,M1內含 10-bit A/D 轉換器,適合高密度電路設計,可搭配多達12區域的電阻式觸控面板設計,實現PenMount為「安全」及「確認」所設計的特別功能。

PenMount M1
Support

Able to support Multi-Finger Resistive touch screen with 1~12 zones

Interface

USB Model : USB Full Speed
RS232 Model : 19200 baud rate, None parity, 8 data bits, 1 stop bit, non-PnP mode

Resolution

1024 x 1024

Cursor Accuracy

< 1% (Active Area Diagonal of touch screen. After calibrated with PenMount Advanced Calibration)

Sample Rate

167 points/sec (1 finger touch)
125 points/sec (2 fingers per finger)
The average is about 100~40 points/sec.(3~12 fingers)

Resistance Range

50 ~ 1.5 K ohm for each zone

Touch Response Time

30ms

Power Requirements

Voltage: +5V DC ± 5% (50mV peak to peak max ripple)
(Current: maximal 100mA, typical 70mA)

Storage Temperature

-40 ℃ to +85 ℃

Operating Temperature

-20 ℃ to +70 ℃

PenMount M1 Driver and Software
  • Supports Microsoft Windows XP / Vista / 7
  • Provides single touch gesture recognition on Microsoft Windows systems
  • Software library is available by request for developing applications based on Microsoft Windows 2000 and later operating systems.
  • Available software utilities :
    • Advanced calibration
    • Right mouse button simulation
    • Multi-monitor setting
    • Screen rotation detection
    • Draw program
