Resistive RS-232 Touch Control Board
There are two PenMount RS-232 control boards:
- PM9026BH
- PM9036CH
The PM9026BH supports 4 and 8 wire touch panels. Its driver supports all Microsoft and Linux operating system platforms and possesses a built-in LED indicator light. The PM9036CH supports 4, 8, and 5 wire touch panels.

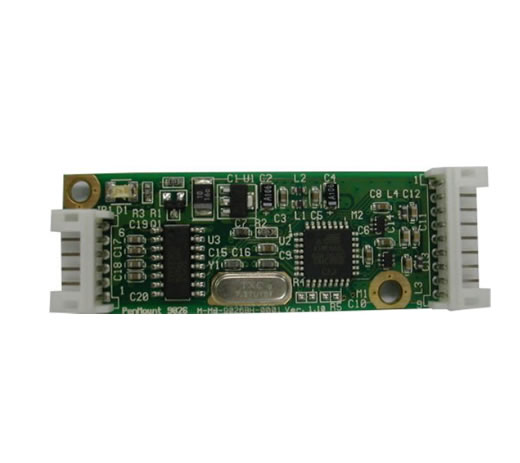

PM9026BH Control Board
| Touch Screen | For 4, 8-wire analog resistive type |
|---|---|
| Interface | RS-232 |
| Baud Rate | 19200 baud rate selection, N81 |
| Mode selection | PnP mode |
| Resolution | 2048×2048 |
| Resistance Range | 50~1.3K ohm |
| Electrostatic Discharge (ESD) | Air Discharge 15KV |
| Power Input | +5V DC |
| Operating Temperature | 0℃ ~ 50 ℃ |

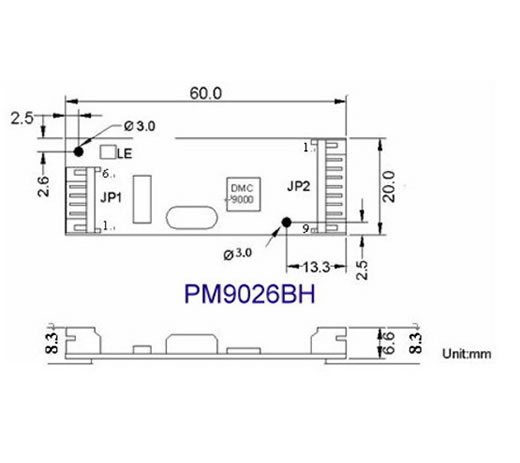

| Mechanical Size | 60×26 mm, two 3φ screw holes |
| Diagnostic | LED on board |
| Power Consumption | Standby Mode : 16 mA ; Active Mode : 27.5 mA ( VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm ) Note. Actual current will be different by touch panel’s resistance. |
PM9036CH Control Board Driver Software
DOS, Windows 3.1/ NT4.0/ 95/ 98/ Me/ 2000/ XP/ 2003/ 2008/ Vista/ 7/ 8, Linux (up to kernel 2.6), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5, Windows CE 4.2/ 5.0/ 6.0/ 7.0 (for X86, Armv4, Armv4i platform); Solaris 10

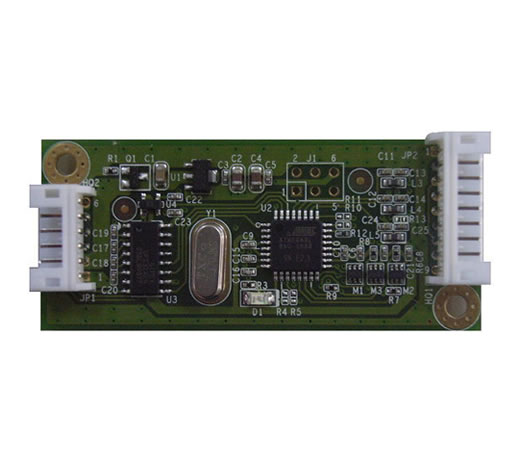

PM9036CH Control Board
| Touch Screen | For 4, 8-wire or 5-wire analog resistive type |
|---|---|
| Interface | RS-232 |
| Baud Rate | 19200 baud rate selection, N81 |
| Mode Selection | PnP mode |
| Resolution | 2048×2048 |
| Resistance Range | 50~1.3K ohm |
| Electrostatic Discharge (ESD) | Air Discharge 15KV |
| Power Input | +5V DC |
| Operating Temperature | -20℃ ~ 70 ℃ |
| Storage Temperature | -40 ℃~ 85 ℃ |

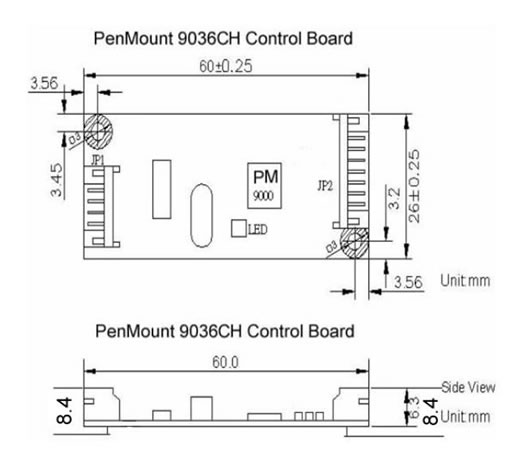

| Mechanical Size | 60×26 mm, two 3φ screw holes |
| Diagnostic | LED on board |
| Power Consumption | Standby Mode : 16 mA ; Active Mode : 27.5 mA ( VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm ) Note. Actual current will be different by touch panel’s resistance. |
PM9036CH Control Board Driver Software
DOS, Windows 3.1/ NT4.0/ 95/ 98/ Me/ 2000/ XP/ 2003/ 2008/ Vista/ 7/ 8, Linux (up to kernel 2.6), QNX 6.2/ 6.3.2/ 6.4.1/ 6.5, Windows CE 4.2/ 5.0/ 6.0/ 7.0 (for X86, Armv4, Armv4i platform); Solaris 10
