Resistive USB Control Board
There is one control board in the PenMount USB series.
- PM6300B
The PM6300B supports 4, 8, and 5 wire touch panels. Its driver supports all Microsoft and Linux operating system platforms and possesses a built-in LED indicator light.

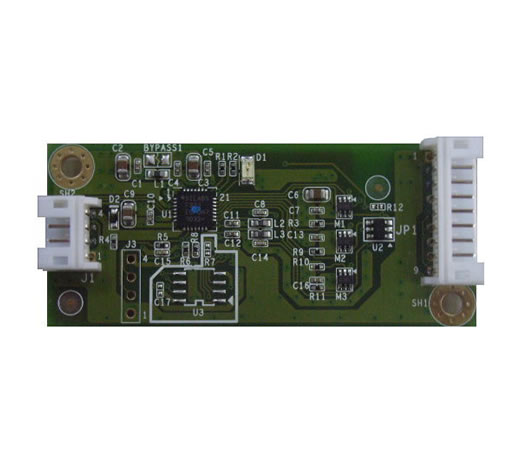

PM6300B Control Board
| Touch Screen | For 4, 8-wire or 5-wire analog resistive type |
|---|---|
| Communications | USB Full-speed, 12Mbps |
| Touch Screen Controller | PenMount 6010 controller IC |
| Resolution | 4096×4096 |

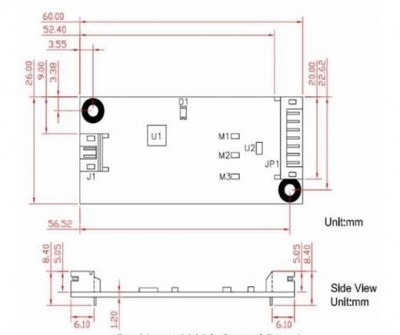

| Size | 60×26 mm, two 3φ screw holes |
| Cursor accuracy | < 1% (Active Area Diagonal of touch screen with PenMount Advanced calibration utility support) |
| Resistance Range | 50~1.3K ohm |
| Diagnostic | LED on board |
| Operating Voltage | +5V DC |
| Electro Static Discharge (ESD) | Air Discharge 15KV, |
| Storage Temperature | -40 ℃~ 85 ℃ |
| Operating Temperature | -20℃ ~ 70 ℃ |
| Power Consumption | Standby Mode : 13.4 mA ; Active Mode : 21.5 mA (VCC=+5V, Top sheet Panel Resistance: 365 ohm ; Bottom sheet Panel Resistance: 660 ohm) Note. Actual current will be different by touch panel’s resistance. |
PM6300B board Driver Software
Windows 2000 / XP / XPE / 2003 / 2008/ Vista / 7/ 8/10/11 WinCE 4.2 / 5.0 / 6.0/ 7.0 Linux ( Kernel 2.6 and X-Window mode ) QNX 6.4.1/ 6.5 ( Inbox support )
